DAC – 3 Pin – Side Entry Right Angled – Screw Terminal Block

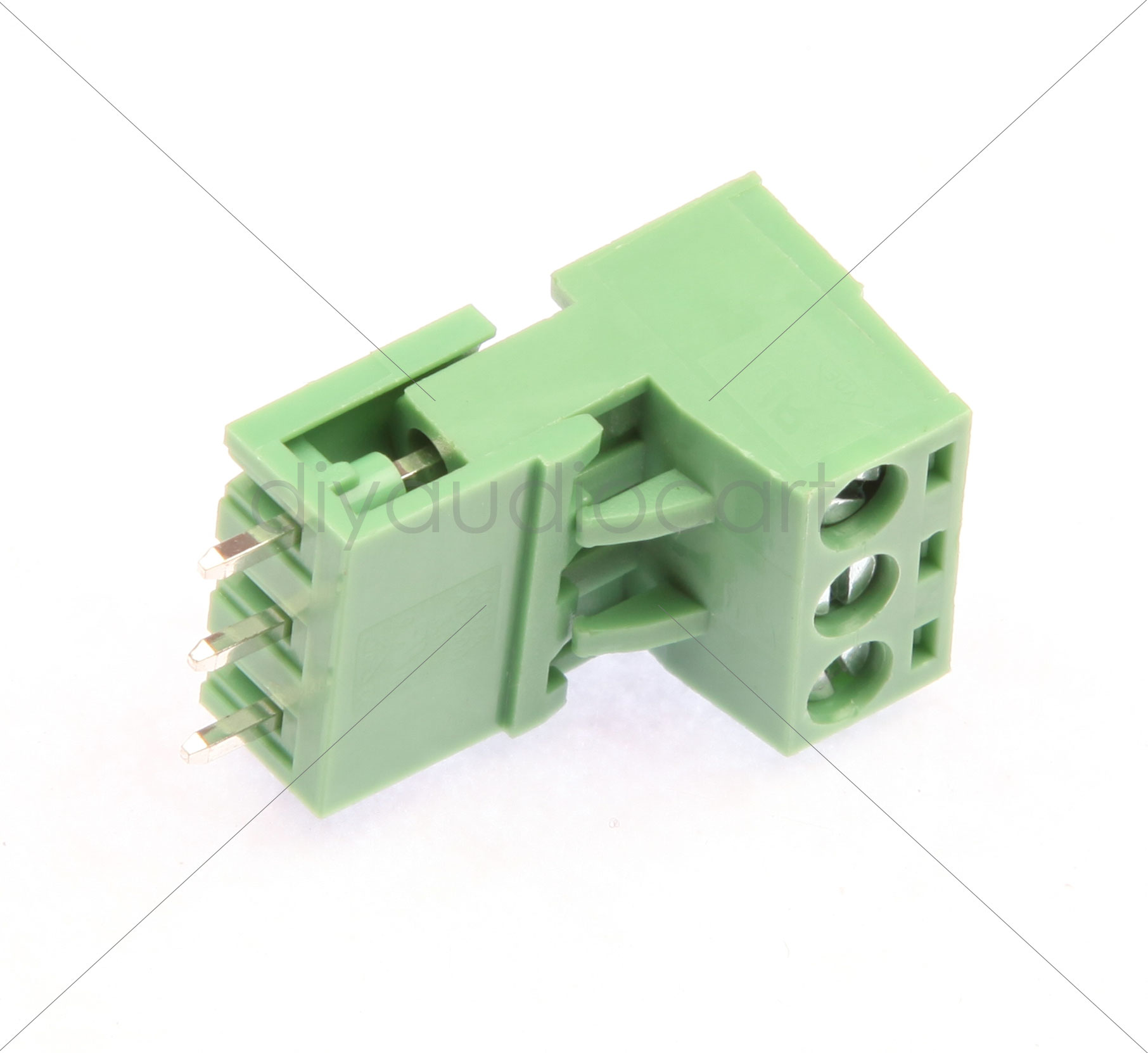

DAC – 3 Pin – Side Entry Right Angled – Screw Terminal BlockOverview:For screw pluggable system, the plug uses the screw structure to contact. Screw pluggable terminal block connectors are used primarily in wire-to-board situations. Designed to be connected or detached with ease, the plug uses its screw structure to protect and fix the wire to the contact.Technical Specifications:Dimensions:Poles: 3PPitch: 5mmElectrical:Standard: UL IECVoltage Rating: 300V        250VCurrent Rating: 15A         24AWire range: 24-14AWG    0.5-2.5mm squareWithstand voltage: AC2000V/MinMechanical:Torque: 0.4N.M(3.5Lb-In.)Ambient temperature: -40 to 105 Degree CelsiusStrip length: 6-7mmMaterial:Housing: PA66(UL 94V-0)Solder Pin: Brass,Tin PlatedWire Cage: Brass,Nickel PlatedScrew: M2.5,steel, A3 Zn platedApplications:Embedded control unitsMeasurement equipmentMedical InstrumentationPower SuppliesSecurityHVACLightingNote:Color may change depending upon the stock availability.This item contains 1 x Male part and 1 x Female part as shown in the image.
