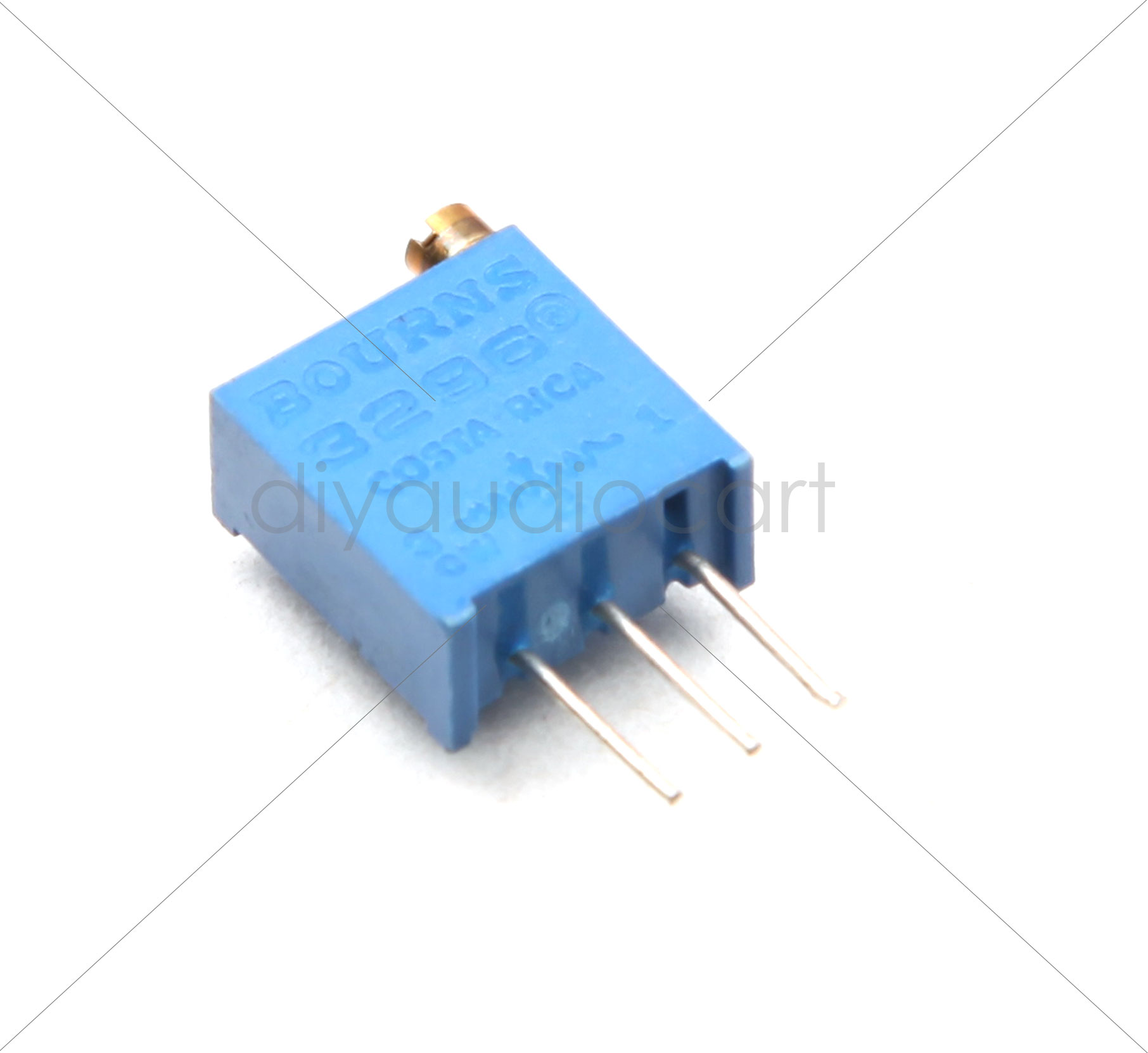

Bourns – Square Multiturn Trimpot – 100 Ohms

Bourns – Square Multiturn Trimpot – 100 Ohms Overview:Bourns® Trimpot® trimming potentiometers perform a variety of circuit adjustments in all types of electronic equipment. The variety of physical configurations available and the ability to withstand today's manufacturing environment offers the designer flexibility in selecting the best trimmer for the application. Around the world, trimmers are used in virtually every electronic market.Bourns® Trimpot® product line offers the widest array of through hole sealed trimming potentiometers in the industry. The Trimpot® product line takes full advantage of Bourns® core competencies in ceramics, thick-film printing, welding and brazing to offer reliable electronic products.This vertical package of these trimpots are ideally suited to heavily populated circuit boards where fine adjustment is required and horizontal access is not practical. The top mounted wiper adjust and the overall small footprint of this package make it perfect for circuit board designs where real estate is at a premium. Technical Specifications:Adjustment: Top Crossed    Product Type: Multi-Turn    Taper: Linear    Resistance: 100 Ohms    Power Rating: 500 mW (1/2 W)    Termination Style: Radial    Tolerance: 10 %    Dimensions: 9.53 mm W x 9.53 mm L    Element Type: Cermet    Mounting: Panel Mount    Operating Temperature Range: – 55 C to 150 C    Series: 3296     Product Manuals / Spec Sheets / Downloads:To download datasheet, Please click Here.
