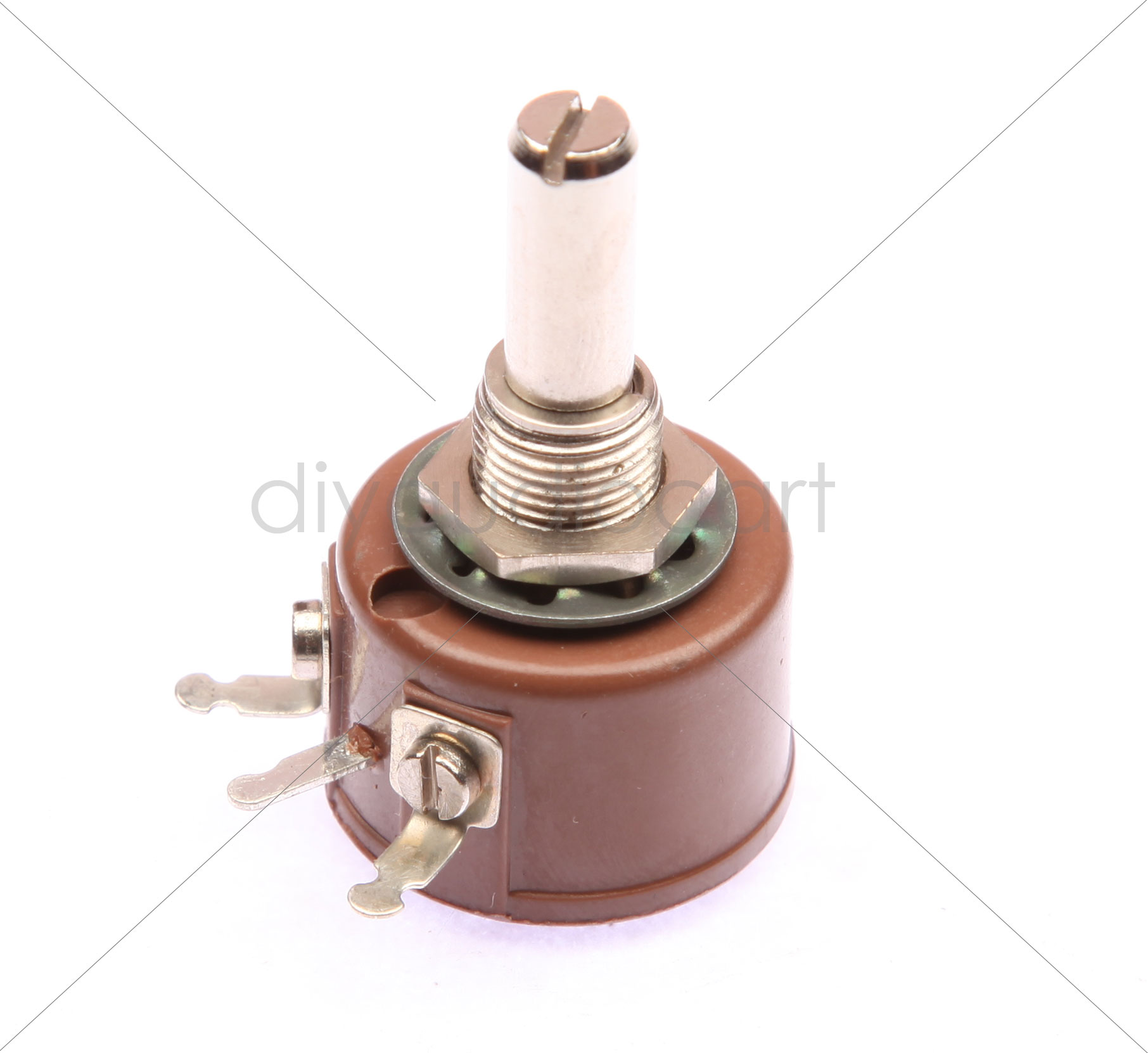

Pankaj – 500 Ohms – Wire Wound Potentiometer – 1 Watts

Pankaj – 500 Ohms – Wire Wound Potentiometer – 1 WattsOverview:PANKAJ Single Turn Wire Wound Potentiometers, Model V.R-1, manufactured with wide resistance range, variety of shaft lengths and design. Rated @ 1 Watt, the product is suitable for mid level power requirements, longer rotational life, better end torque & stable output.Product Specifications: Resistance Range500 ΩResistance Tolerance  10 % Standard,   5 % specialPower Ratting1 Watt @ 40 ° CEnd Resistance 0.2 Ω or 0.02 % which ever is greaterElec. Angle of Rotation275°   15°Mechanical Angle of Rotation285°   15°Maximum Working Voltage500 VDCInsulation Resistance 300 M Ω @ 500 VDCVoltage Proof 1500 VAC for 1 Min. At Sea levelTCR of Resistance Wire 150 ppm/ ° CRotational Life Expectancy20,000 Cycles at 15 RPMTemperature Range 0 – 70° C D Type Shaft80 mm Shaft Length80 mmFeatures:Brass Nickel Plated Bush & SpindleTin Plated TerminalsThermoset HousingAnti Rotating Mounting PlateSemi Log Resistance CurveVarious Shaft Lengths and DesignsApplications:Temperature Controllers, Power Supplies. AC/DC Motor Drives, Process Control EquipmentsTest and Measuring Instruments, Control Panels, Offset SettingsAmplifier Speakers
