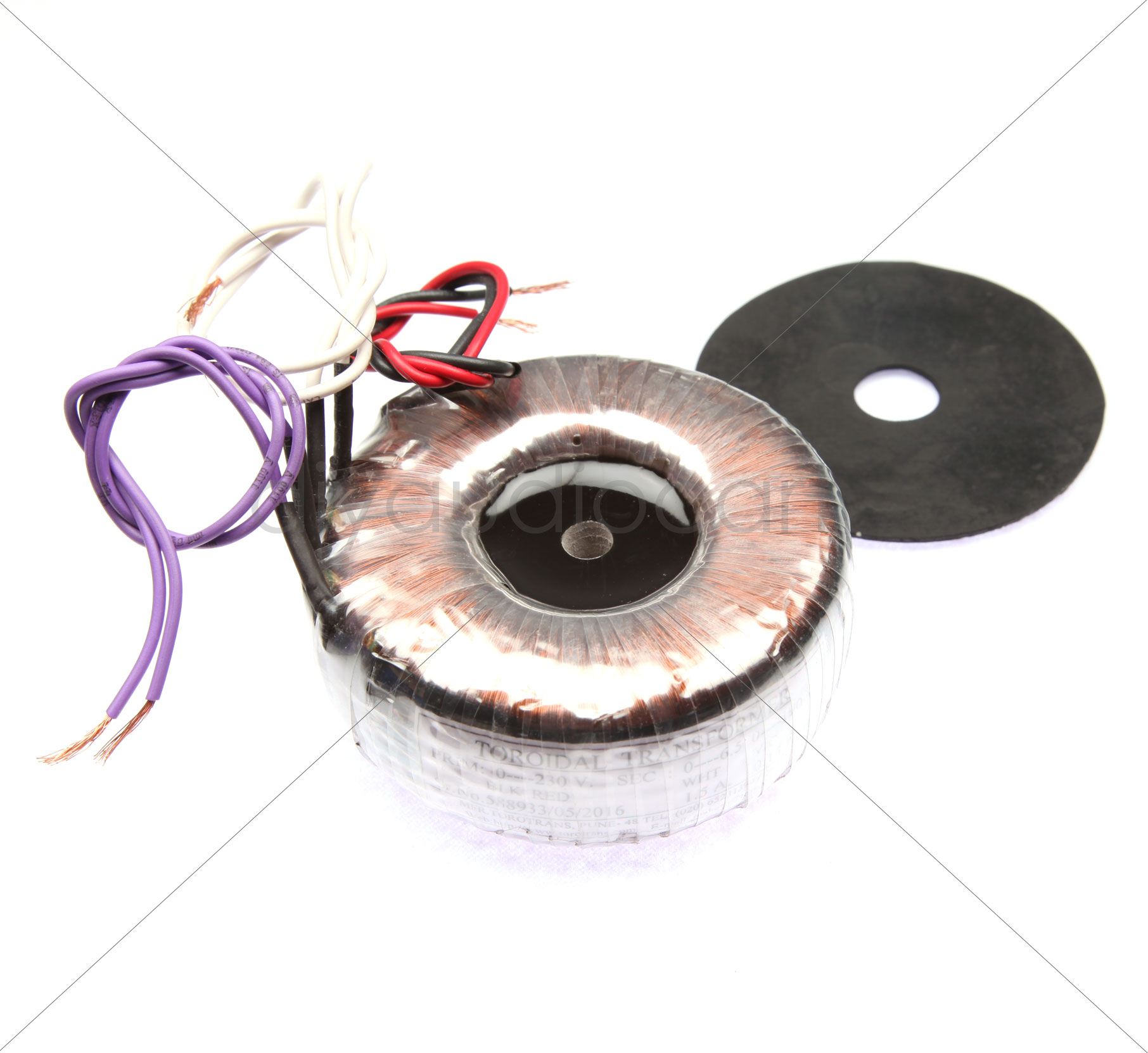

DAC – 0-190V X 1, 0-6.5V X 1 – Toroidal Transformer – 38VA

DAC – 0-190V X 1, 0-6.5V X 1 – Toroidal Transformer – 38VA Overview:DAC's power transformers offer exceptional value for money and performance for use in any high-quality power supply. All transformers are wound with good quality copper and are wrapped with polyester tape, meeting all major industry standards. These include CRGO steel core, mounting nut and bolt etc. CRGO steel core is having less hysteresis losses therefore the efficiency is high as compared to normal core transformer. Specifications:Primaries: 230VACFrequency: 50/60 HzLoad Capacity: 38 VASecondary Voltage 1: 0 – 190VAC @ 0.15ASecondary Voltage 2: 0 – 6.5VAC @ 1.5ADimensions (Approx.): 85mm (Diameter) x 35mm (Height)Weight: 1 KG Features:Small size and low weight compared with traditional stacked lamination typesExtremely low level of radiated magnetic fieldVery low induced noise (hum)Very low iron lossSupplied with mounting hardwares.Very High Efficiency (90 to 95%).Ideally suitable 24/7/365 operation due to very low no load losses.CRGO Core ensuring low core loss. Applications:Tube Pre-AmpMedical equipmentsGeneral power supplyIndustrial power supply Warning:Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework. This would constitute a shorting and cause irreparable damage. When wiring the unit to devices, special attention should e given to the colours of leads to ensure correct connection and polarity. Any improper connections may render the unit unworkable. Note:We can custom build toroidal transformer as per your requirement. Kindly click on the Contact Us with your requirement specification to get a quotation.
