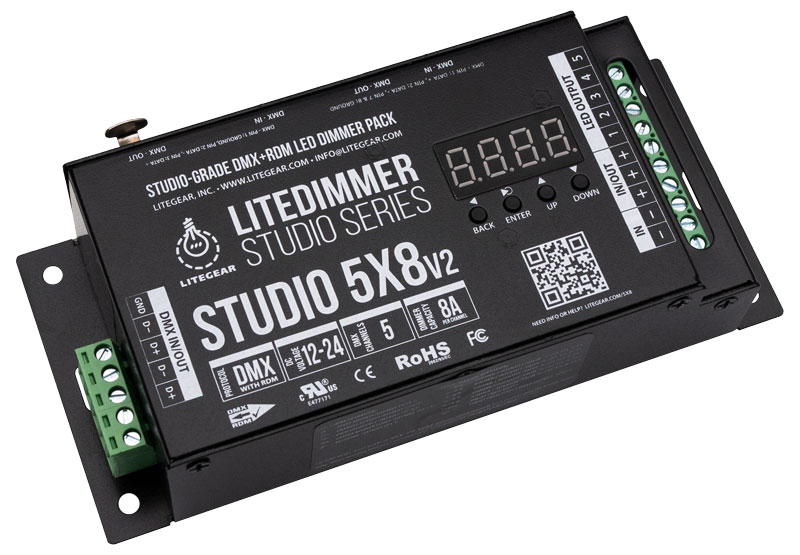

LiteDimmer Studio Series, 5X8-V3

LiteDimmer STUDIO SERIES 5X8-V3 is the most advanced DMX-controlled LiteRibbon® dimmer available. Each of its five channels is capable of controlling 100W at 12VDC or 200W at 24VDC – that’s 8 amps maximum per channel. We have included specialized software modes that allow for true cinema- and TV-style action: from the simple setting where all channels respond to DMX address 1 to a more advanced mode that allows for freely mixing RGB with Hybrid (bi-color) white to achieve saturated and desaturated colors and color-correct white light output. Adjustable PWM frequency, 8-bit or 16-bit operation, combined with user-selectable dimmer curves make our Studio 5×8 like no other. The 5×8 belongs to the LiteDimmer Studio family, making it one of the most advanced DMX‐controlled LiteDimmers available. A 5‐channel unit with 8‐amps max. per channel, the 5×8 has adjustable PWM frequencies, 8 or 16 bit DMX operation, selectable dimmer curves, and specialized software modes that allow for true cinema and TV‐style action. The 5×8 works best with LiteGear LED products.
