DAC – 4 Way Slide Type – DIP Switch

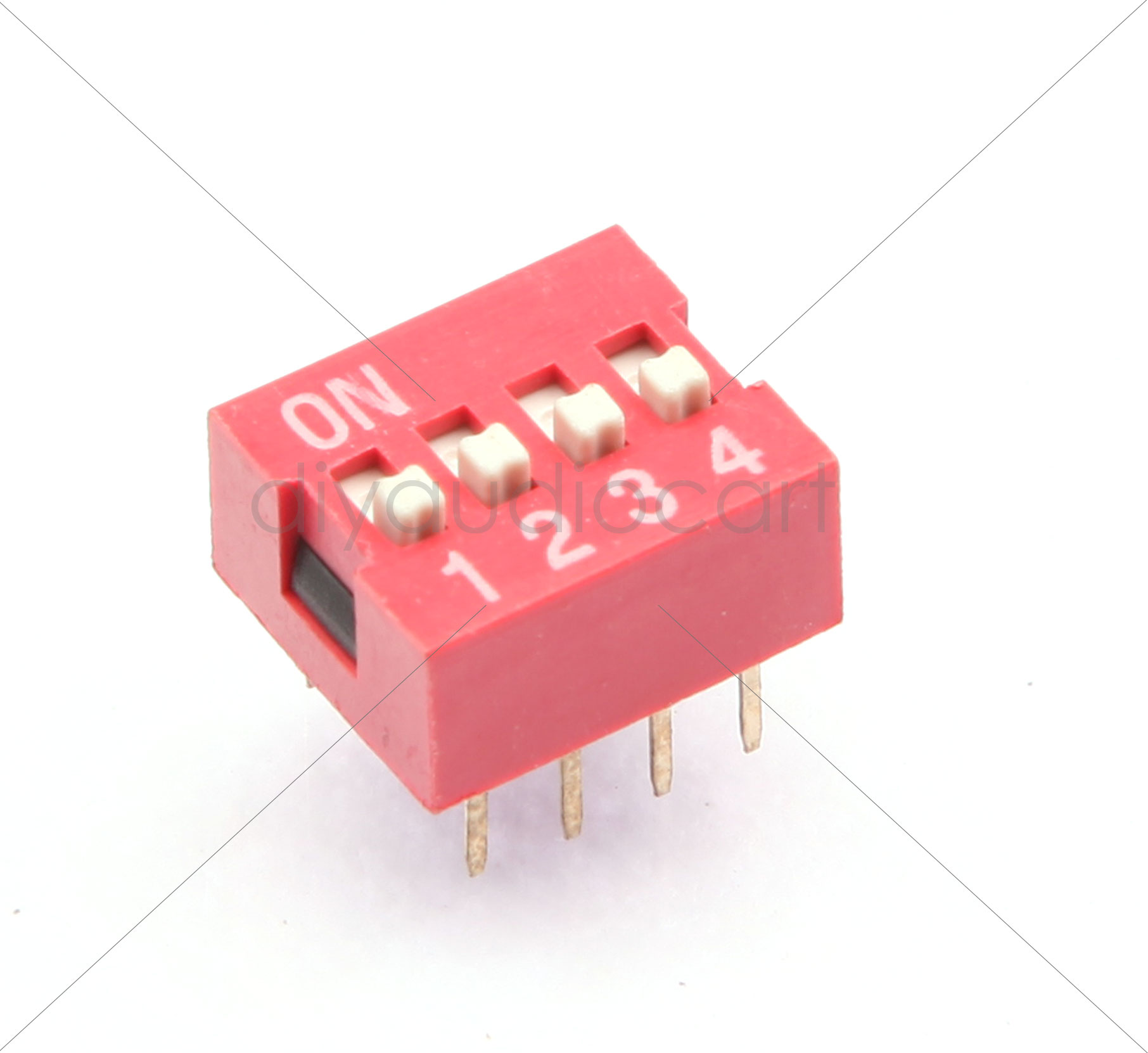

DAC – 4 Way Slide Type – DIP SwitchOverview:This DIP switch is designed to be used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations. Widely used in data processing, communication, remote control and anti-theft alarm system need to manually automatic programming products. 4 position switch in a standard 8pin DIL package. Ideally Suited for Multiple Programming Functions.Technical Specifications:Product Name: DIP SwitchType: 4 Way Slide StylePoles: 4 x 2 Pin(2 rows)Pitch: 2.54mmNon-Switching Rating: 100mA DC 50VSwitching Rating: 25mA DC 24VContact Resistance: 30m Ohm max. initially @ 100mADimension: 1.1 x 0.9 x 1cm/ 0.4″ x 0.3″ x 0.4″(L*W*T)Features:Gold plated contacts and pinsDurable self wiping contactsOn/Off Status markedApplications:Ideally Suited for Multiple Programming FunctionsPre-AmplifierActive Filter
