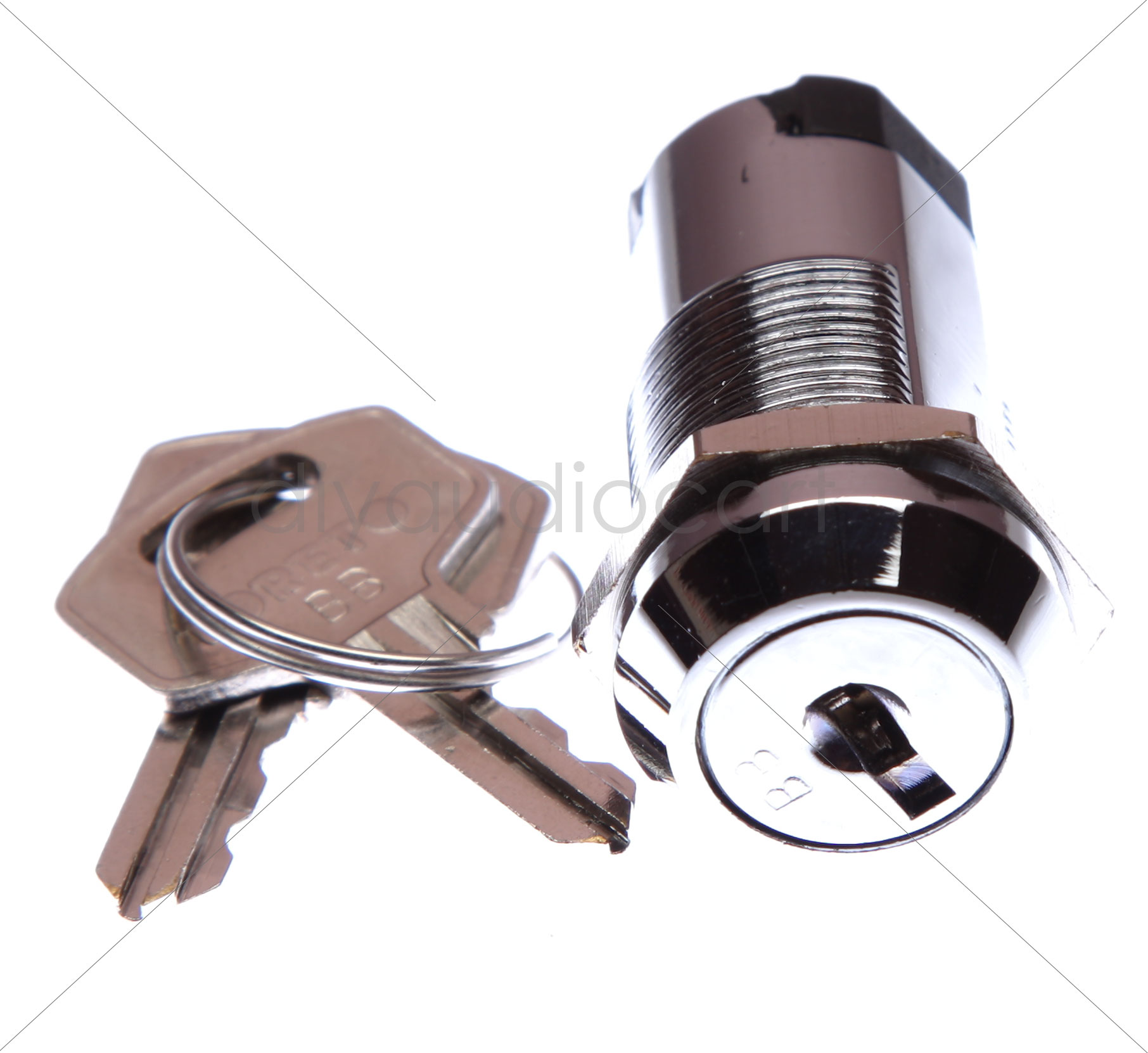

Elcom – Key Lock Switch 5A

Elcom – Key Lock Switch 5AOverview:High quality, flat key switch. Good switch for Pre Amp, Power Amp, alarm system use. Includes 2 keys.Technical Specifications:Switch Type:Key Removable in 1 PositionPermissible Temp For With/Without Load:-20 deg. C to 85 deg. CPermissible Temp For Soldering:270 deg. C for 5 sec. max.Body:MozakTerminal Style:Solder-typeProduct Weight:50.2 gm .Key Combinations:Upto 48Insulation Resistance:100 M Ohms at 500 VDCH. V. Breakdown Test:1 KVAC For 1 minuteElectrical Life:10000 Cycles min.Current Carrying Parts:Terminals-Copper, Silver platedContact Resistance(Max, Initial):10 m OhmsContact & Voltage Rating:3 A, 250V ACContact Arrangement:SPDT Key Lock Switch
