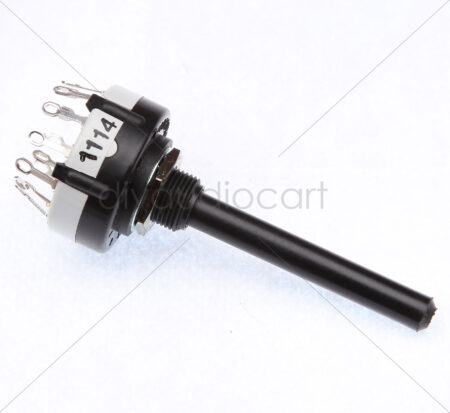

Elcom – Rotary Switch 3 Pole 4 Way Non-Shorting

Elcom – Rotary Switch 3 Pole 4 Way Non-ShortingOverview:This 3 pole 4 way non-shorting rotary switch can be used with projects or replace damaged and warn out switches. Non-shorting contacts rated to 125 VAC at 300 mA. Steel ball bearing control.Specifications:No. of Poles: 3Terminals(Min): Solder-typeReference Standard: IEC-1058Permissible Temp. For Soldering: 270 deg. C for 5 sec. max.Permissible Temp For With/Without Load: -20Deg. C To 85Deg. C .Mounting: Panel, Screw-typeMaterial Shaft: NylonMaterial Current Carrying Parts: Copeer Alloy, Silver, Tin, Nickel PlatedMaterial Body: NylonInsulation Resistance at 500V DC(Min): 1000 M OhmsH. V. Break Down Test: 1.5 KVAC for 1 minuteElectrical Life: 10000 Cycles / PoleContact Resistance(Max, Initial): 20 m OhmsNo. of Ways: 1 to 4Voltage Rating: 150mA, 250V ACProduct Manuals / Spec Sheets / Downloads:To download datasheet, Please click Here.Contact Elcom support:Product Support: support[at]elcom-in.comNote: Replace “[at]” with “@” before sending email.For other support: Please click Here.
