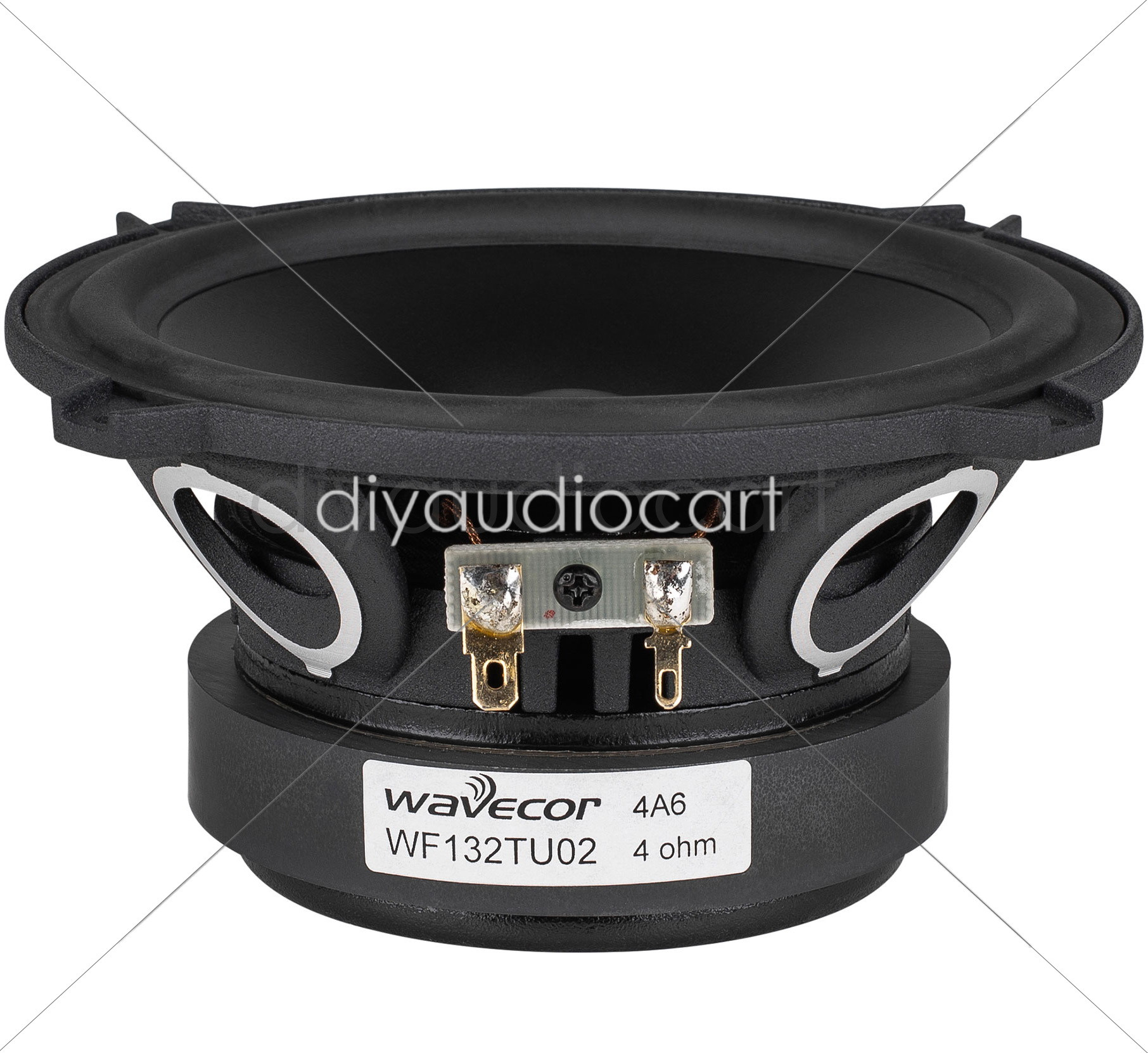

Wavecor WF132TU02 5-1/4″ Paper Cone Mid-Woofer 4Ohm

Wavecor WF132TU02 5-1/4″ Paper Cone Mid-Woofer 4Ohm Quick Overview:The Wavecor WF132TU02 is a 5-1/4″ paper cone midwoofer that is designed for demanding bass and midrange applications. This driver is powered by a large magnet structure that ensures good efficiency. The WF132TU02 is an ideal choice for car audio applications. Product Highlights:Very rigid die cast alu chassis to withstand challenging car applicationsBuilt-in alu field-stabilizing ring for reduced high-level distortionVented voice coil former for reduced distortion and compressionVented chassis for lower air flow speed reducing audible distortionHeavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level detailsLarge motor system with 1�” voice coil diameter and large 90 mm magnet for better control, power handling, and efficiencyLinear suspension with specially designed Conex damper (spider) for long durability under extreme operating conditionsGold plated terminals to prevent oxidation for long-term reliable connection – important in a car environment Product Description:The Wavecor WF132TU02 is a 5-1/4″ paper cone midwoofer that is designed for demanding bass and midrange applications. This driver is powered by a large magnet structure that ensures good efficiency. The WF132TU02 is an ideal choice for car audio applications.The large motor system with 1-1/4” voice coil diameter and large 90 mm magnet for better control, power handling, and efficiency. The optimized paper cone ensures wide bandwidth and low distortion. Distortion is further reduced by efficient venting of chassis and voice coil. The Wavecor WF132TU02 is an obvious choice for 2-way high-end car speaker systems. Product Specification:  ParameterBefore burn-inAfter burn-inUnitNominal size5.25[inch.]Nominal impedance4[ohm]Recommended max. upper frequency limit4[kHz]Sensitivity, 2.83V/1m (average SPL in range 200 – 1,000 Hz)90[dB]Power handling, short term, IEC 268-5, no additional filtering[N/A][W]Power handling, long term, IEC 268-5, no additional filtering[N/A][W]Power handling, continuous, IEC 268-5, no additional filtering55[W]Effective radiating area, Sd95[sq.cm]Resonance frequency (free air, no baffle), Fs62 [N/A][Hz]Moving mass, incl. air (free air, no baffle), Mms10.0[g]Force factor, Bxl5.2[N/A]Suspension compliance, Cms0.66 [N/A][mm/N]Equivalent air volume, Vas9.0 [N/A][lit.]Mechanical Q, Qms8.0 [N/A][-]Electrical Q, Qes0.46 [N/A][-]Total Q, Qts0.44 [N/A][-]Voice coil resistance, RDC3.2[ohm]Voice coil inductance, Le (measured at 10 kHz)0.23[mH]Voice coil inside diameter32[mm]Voice coil winding height11[mm]Air gap height5[mm]Magnet weight400[g]Total unit net weight excl. packaging1.08[kg]Krm 0.13[mohm]Erm0.99[-]Kxm4.2[mH]Exm0.71[-]Wavecor WF132TU02 DATA SHEET
