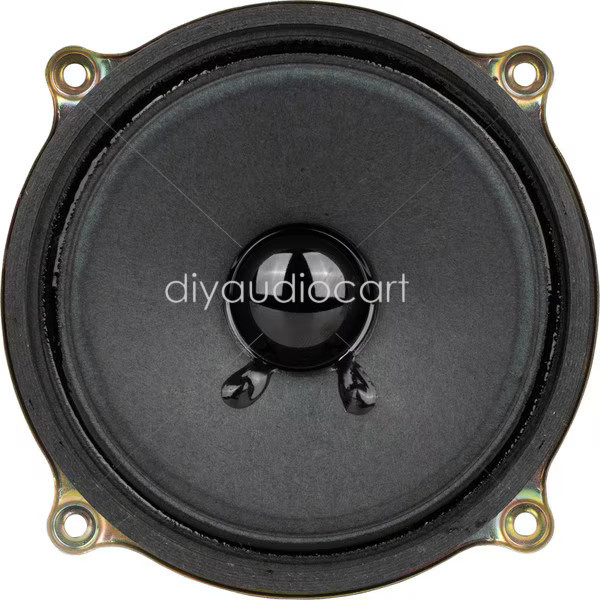

DAC – EAS10P241JD3 4″ Paper Cone Full-Range Speaker 4 Ohm

DAC – EAS10P241JD3 4″ Paper Cone Full-Range Speaker 4 Ohm Overview:The EAS10P241JD3 4″ Paper Cone Full-Range Speaker utilizes a paper cone and treated paper surround for excellent damping characteristics. Features:Rear-mount design helps hide mounting hardwareGreat replacement in vintage boomboxes and small stereosSmall mounting flange makes this a good contender for line arrays Product Details:BrandDACModelEAS10P241JD3Unit of MeasureEachWeight0.4 Product Specifications:Nominal Diameter4″Bolt Circle Diameter4.25Power Handling (RMS)5 WattsPower Handling (MAX)10 WattsImpedance4ΩFrequency Response125 to 10,000HzSensitivity89.81dB 2.83V/1mVoice Coil Diameter0.5″ Thiele-Small Parameters:Resonant Frequency (Fs)124HzDC Resistance (Re)3.587ΩMechanical Q (Qms)6.18Electromagnetic Q (Qes)1.311Total Q (Qts)1.081Compliance Equivalent Volume (Vas)0.1503ft³Diaphragm Mass Inc. Airload (Mms)1.591gMaximum Linear Excursion (Xmax)0.625mmSurface Area of Cone (Sd)54.11cm² Materials of Construction:Cone MaterialPaperSurround MaterialPaperVoice Coil Wire MaterialCCAVoice Coil FormerPaperBasket / Frame MaterialSteelMagnet MaterialFerrite Mounting Information:Overall Outside Diameter4″Baffle Cutout Diameter3.625″Depth1.625″# Mounting Holes4
