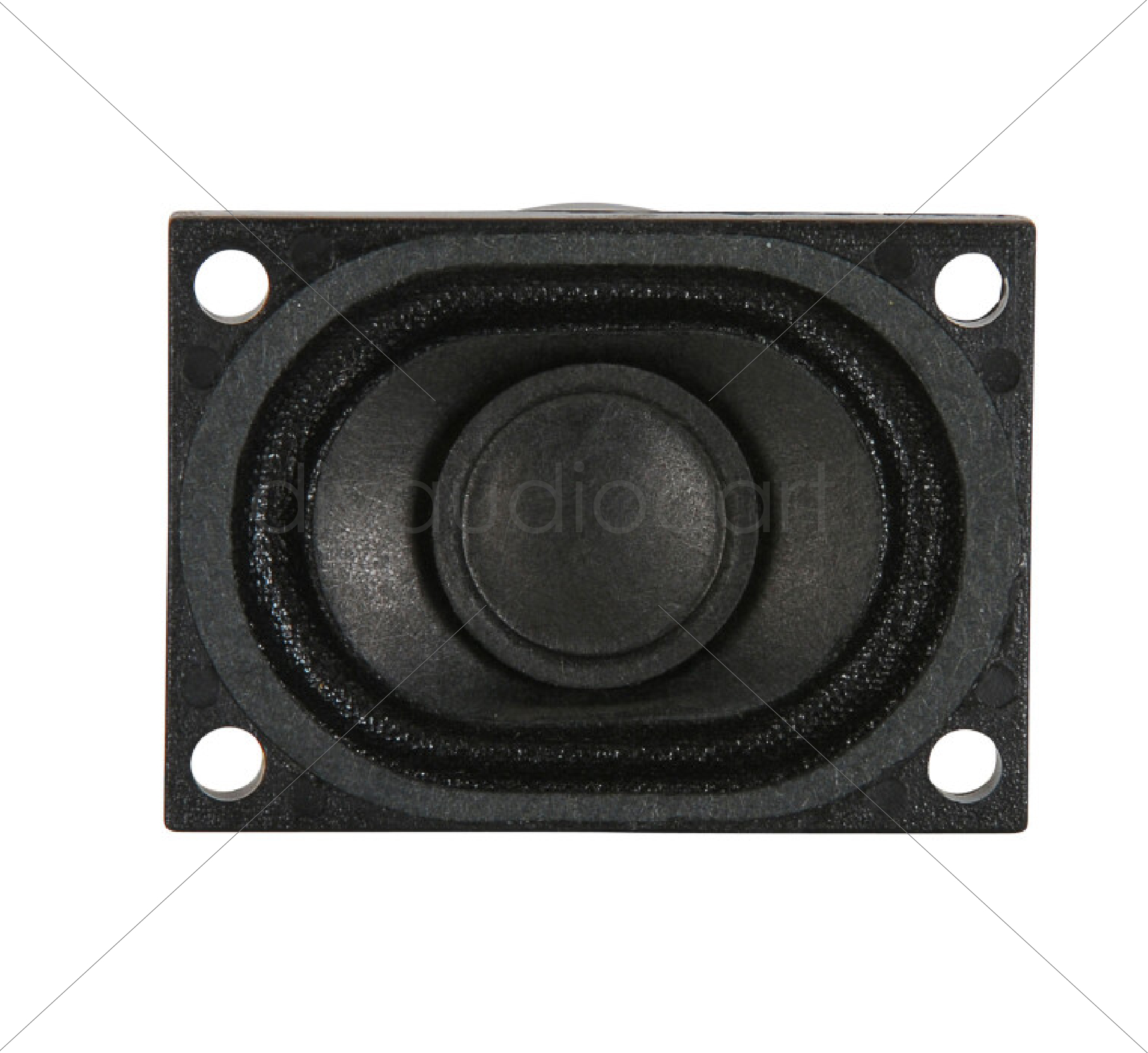

Dayton Audio CE Series CE40-28P-8 1-1/8″ x 1-1/2″ Mini Speaker

Dayton Audio CE Series CE40-28P-8 1-1/8″ x 1-1/2″ Mini Speaker Overview:Dayton Audio’s CE40-28P-8 is an economical mini speaker that features a high-output neodymium motor, a lightweight paper cone, a front gasket, and a molded plastic frame drilled for conventional mounting. 8 ohm impedance. Product Highlights:Racetrack-shaped paper cone with fabric surroundSlim design for narrow and shallow profile installationHigh-energy neodymium motor Product Description:Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8″) to 90 mm (3-1/2″) in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.The CE40-20P-8 is a slim driver that’s perfect for applications that require its shallow profile and rectangular shape. Its high-quality design features a paper cone, fabric surround, textile spider, high-performance neodymium motor, and an injection-molded frame that’s drilled for conventional mounting Product Details :BrandDayton AudioModelCE40-28P-8Part Number–UPC848791000362Unit of MeasureEachWeight0.05 Product Specification:Nominal Diameter1 x 2″Bolt Circle Diameter–Power Handling (RMS)2 wattsPower Handling (MAX)4 wattsImpedance8 ohmsFrequency Response550 to 15,000HzSensitivity75dB 2.83V/1mVoice Coil Diameter0.5″ Thiele-Small Parameters:Resonant Frequency (Fs)608HzDC Resistance (Re)7ΩVoice Coil Inductance (Le)0.26mHMechanical Q (Qms)3.96Electromagnetic Q (Qes)9.87Total Q (Qts)2.83 Materials of Construction:Cone MaterialTreated PaperSurround MaterialRubberVoice Coil Wire MaterialCopperVoice Coil FormerAluminumBasket / Frame Material–Magnet MaterialNeodymium Mounting Information:Overall Outside Diameter1.13″ x 1.57″Baffle Cutout Diameter0.97″ x 1.32″Depth0.57″Mounting Holes4 Dayton Audio CE40-28P-8 SpecificationsDayton Audio Manufacturer Warranty
