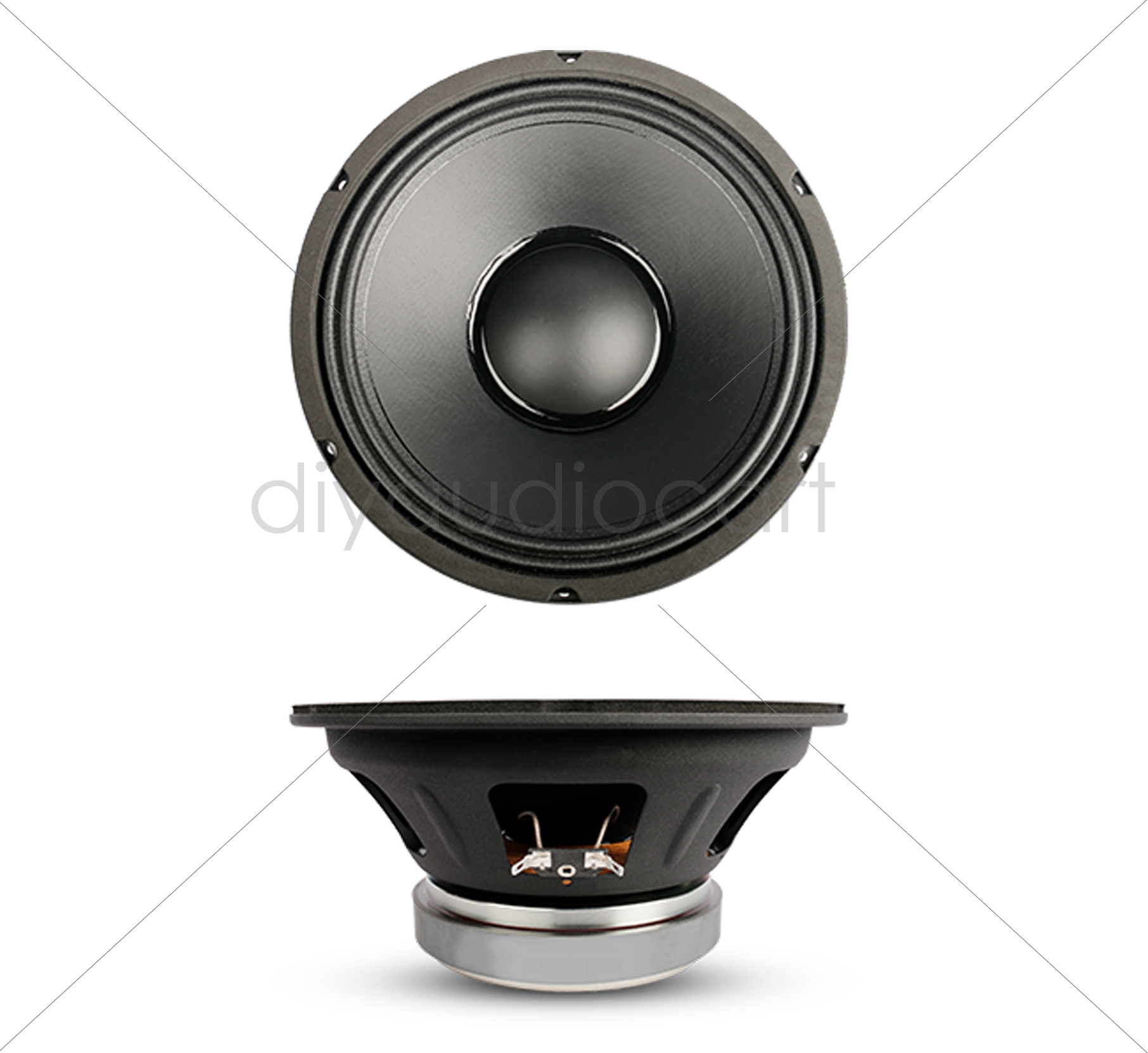

SB Audience Bianco-10MW200 10″ Mid-woofer

SB Audience Bianco-10MW200 10″ Mid-woofer Highlights:Proprietary cone paper material with linter pulp4″ voice coil with APC (Advanced Polymer Coating)Vented back plate for reduced compressionMinimum damping fiber glass voice coil formerWeather-proof coated conepaperLong life silver lead wires Product Specifications:Nominal Impedance8 OhmMinimum Impedance5.7OhmAES Power Handling (1)250 WMaximum Power Handling (2)500 WSensitivity (1W/1m)98 dBFrequency Range56- 7100 HzVoice Coil Diameter60.5 mm (2.4in)Winding MaterialCopper clad aluminiumFormer MaterialkaptonWinding Depth16.75 mmMagnetic Gap Depth10mm (0.39 in)Flux Density1.1 TMagnetFerriteBasket MaterialStamped steelDemodulation–Cone SurroundDouble half roll with damping glueNET Air Volume filled by driver1.68 litersSpider ProfileSingle downroll constant height wavesWeather Resistantyes Thiele Parameters:Fs56 HzRe5.6 OhmQes0.43Qms2.28Qts0.36Vas41 litersSd366.4 cm2Xmax (3)6.7 mmXdamage (4)20 mmMms 38 grBI13TmLe0.6 mHCms0.22 mm/NRms5.83Kg/sEta Zero1.56 �P130 Dimensions & Weight:Diameter257mm (10.11 in)Bolt Circle Diameter245 mm (9.65 in)Baffle cutout Diameter230mm (9.05 in)Mounting Depth110.5 mm (4.35 in)Net Weight4.4 kg (9.7 lb)Shipping Box289 X 289 X 157 mmGross Weight5.14 Kg (11.33 lb)Flange and Gasket Thickness9.12 mm (0.35 in)   BIANCO-10MW200 Drawing: BIANCO-10MW200 Grafik: NOTES :(1) AES standard, test made with continuous pink noise signal (6 dbcrest factor ;2hours)(2) Maximum power is defined as 3dB greater than nominal power.(3) Xmax=((winding depth-Magnetic gap depth)/2 (Magnetic gap depth/3)(4) Maximum Excursion (p-p) before permanant damage.(5) T/S parameters measured on drive units that are broken in using Klippel LPM Measurement System SB Audience Bianco-10MW200 Specifications Please Click Here.NOTE:  Delivery charges may vary based on Area/Weight of the product
