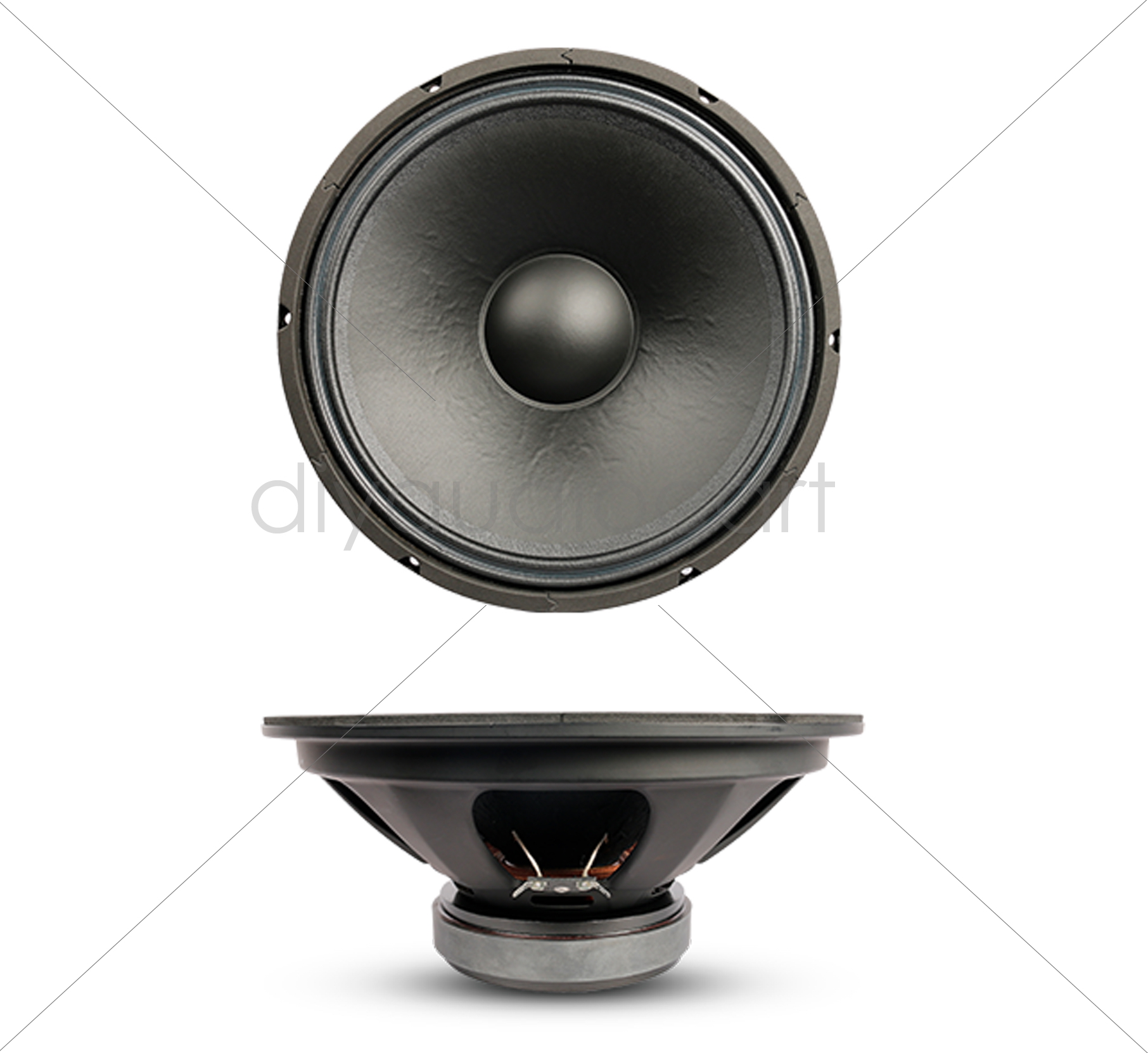

SB Audience Bianco-120B150 12″ Open Baffle Woofer 8Ohm

SB Audience BIANCO-12OB150 12″ Open Baffle Woofer 8Ohm Highlights:Proprietary cone paper material with silk cotton tree and manila pulpMinimum damping fiber glass voice coil former2.4″ voice coilLong life silver lead wiresWeather-proof coated cone paperDesigned for open baffle applicationsVented pole piece for reduced compression Product Specifications:Nominal Impedance8 OhmMinimum Impedance7.2OhmAES Power Handling (1)150 WMaximum Power Handling (2)300 WSensitivity (1W/1m)96 dBFrequency Range44 to 5550 HzVoice Coil Diameter60.5 mm (2.4in)Winding MaterialCopperFormer MaterialTillWinding Depth16.25 mmMagnetic Gap Depth8 mm (0.3 in)Flux Density1.89 TMagnetFerriteBasket MaterialStamped steelDemodulation–Cone SurroundDouble half roll with damping glueNET Air Volume filled by driver2.04 litersSpider ProfileSingle constant height wavesWeather ResistantYes Thiele Parameters:Fs44 HzRe7.2 OhmQes0.69Qms6.39Qts0.63Vas1.3.8 litersSd539.1 cm2Xmax (4)6.79 mmXdamage (5)18 mmMms52.4 gBl12.2 TmLe1.18 mHCms0.25 mm/NRms2.26 Kg/sEta Zero1.2 �P64 Dimensions & Weight:Diameter305 mm (12.0 in)Bolt Circle Diameter294 mm (11.57in)Baffle cutout Diameter276mm (10.86 in)Mounting Depth122.5 mm (4.82 in)Net Weight3.6 kg (7.92 lb)Shipping Box354 X 354 X 182 mmGross Weight4.69 Kg (10.33 lb)Flange and Gasket Thickness9.6 mm (0.37 in)NOTES :(1) AES standard, test made with continuous pink noise signal (6 dbcrest factor ;2hours)(2) Maximum power is defined as 3dB greater than nominal power.(3) Xmax=((winding depth-Magnetic gap depth)/2 (Magnetic gap depth/3)(4) Maximum Excursion (p-p) before permanant damage.(5) T/S parameters measured on drive units that are broken in using Klippel LPM Measurement System.BIANCO-12OB150 Specifications Please Click Here.NOTE:    Delivery charges may vary based on Area/Weight of the product.
