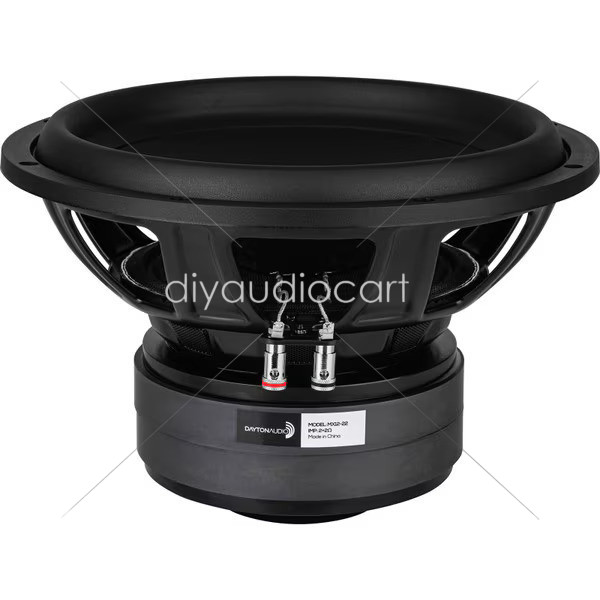

Dayton Audio MX12-22 12″ Max-X High Excursion DVC Subwoofer 2Ohms Per Coil

Dayton Audio MX12-22 12″ Max-X High Excursion DVC Subwoofer 2Ohms Per Coil Overview:The Max-X MX12-22 12″ dual voice coil high excursion subwoofer from Dayton Audio is built for incredible low frequency extension and high SPL. This affordable driver combines durability, efficiency, and maximum displacement into a great looking speaker that will deliver the deepest bass with power and authority. Optimized for use in compact enclosures this driver is ideal for home subwoofer designs and high impact car audio systems. Key Features:±18.8 mm Klippel verified excursion and maximized surface area for excellent displacement capabilitySeamless dish cone is extremely rigid and durable with a sleek and modern lookCustom tooled surround allows long throw while maximizing cone surface areaExtensive venting cools the voice coil enabling high power handling with low power compressionDual spiders maintain linear excursion for lower distortion even when pushed to the limitThe dual 2 ohm voice coils give you the ability to get the most out of any amplifier Key Specifications:Nominal Diameter: 12″Power Handling (RMS): 600WPower Handling (MAX): 1200WImpedance: Dual Voice Coil, 2 Ω 2 ΩFrequency Response: 23-450HzSensitivity: 89.4dB 2.83V/1mVoice Coil Diameter: 2.5″Maximum Linear Excursion: 15.5mm Product Details:BrandDayton AudioModelMX12-22Unit of MeasureEachWeight27.05 Product Specification:Nominal Diameter12″Bolt Circle Diameter11.75Power Handling (RMS)600 WattsPower Handling (MAX)1200 WattsImpedance4ΩFrequency Response 23 to 450HZ                               Sensitivity89.4dB 2.83V/1m                        Voice Coil Diameter2.5″ Thiele  Small Parameters:Resonant Frequency (Fs)28.8HzDC Resistance (Re)3.95ΩVoice Coil Inductance (Le)5.09mHMechanical Q (Qms)3.25Electromagnetic Q (Qes)0.39Total Q (Qts)0.35Compliance Equivalent Volume (Vas)1.61ft³Mechanical Compliance of Suspension (Cms)0.12mm/NBL Product (BL)21.5T·mDiaphragm Mass Inc. Airload (Mms)252gMaximum Linear Excursion (Xmax)15.5mmSurface Area of Cone (Sd)514.7cm² Materials of Construction:Cone MaterialPaper / Glass FiberSurround MaterialRubber                Basket / Frame MaterialSteel     Magnet MaterialFerrite Mounting Information:Overall Outside Diameter                              12.43″                    Baffle Cutout Diameter                              11.18″  Depth                              7.78″# Mounting Holes                                  8  Dayton Audio MX12-22 SpecificationsDayton Audio MX12-22 Graphs/FRD/ZMA Data Files
