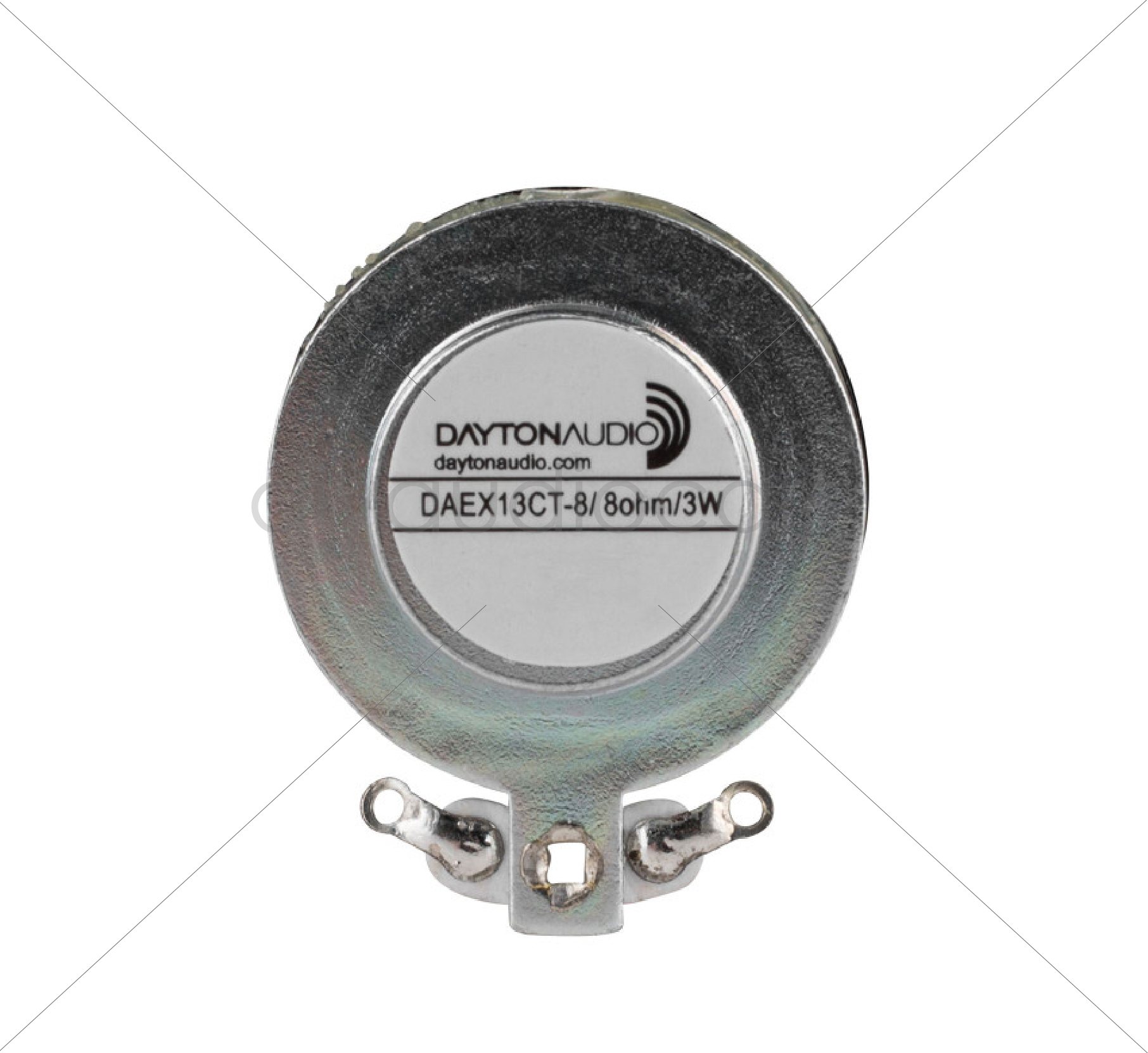

Dayton Audio DAEX13CT-8 Coin Type 13mm Exciter 3W 8 Ohm

Dayton Audio DAEX13CT-8 Coin Type 13mm Exciter 3W 8 Ohm Overview:Dayton Audio’s 13 mm DAEX13CT-8 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter’s small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors… even windows!A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Its 8-ohm nominal impedance facilitates the use of series and series-parallel wired arrays for a highly focused, minimum dispersion sound pattern.To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied… just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Highlights: Super small size; just over an inch in diameter, about 3/8″ highPre-applied 3M™ VHB™ adhesive for a quick, secure installationRare-earth neodymium motor8-ohm impedance for use with small, Class D amplifiersApplications: Retail display cases and store frontsPublic exhibitsSelf service countersDigital signageSpecifications: Power handling 3 watts RMS VCdia 13 mmNominal impedance 8 ohms Re 3.6 ohms Le 0.04 mHFs 650 HzDimensions 1.04″ (26.3 mm) dia. x 0.374″ (9.5 mm)Adhesive dimensions 0.62″ (15.7 mm) H outside diameterWeight 12.5 grams Dayton Audio DAEX13CT-8 SpecificationsDayton Audio Manufacturer Warranty
