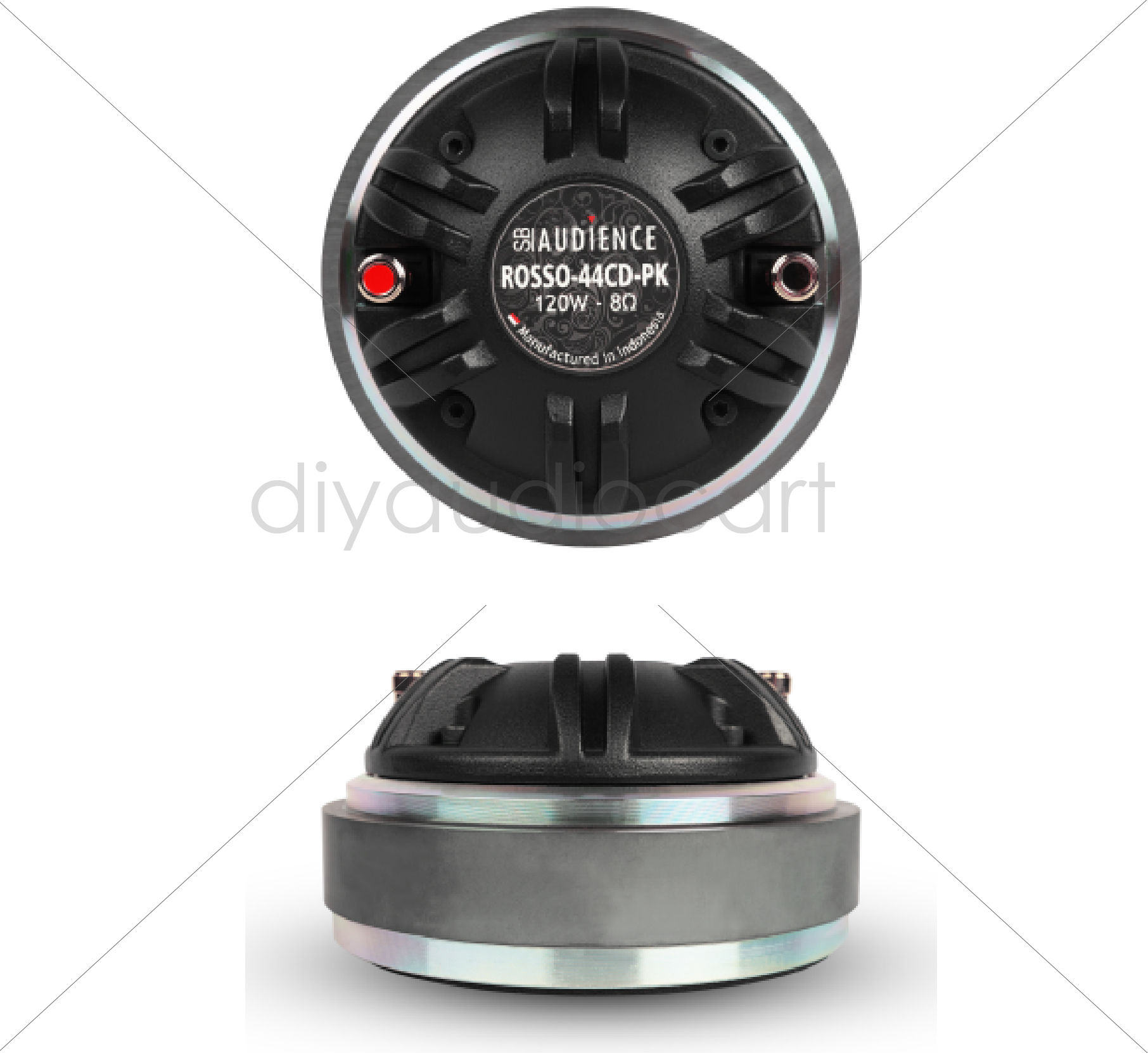

SB Audience ROSSO-44CD-PK Compression Driver 1″

SB Audience ROSSO-44CD-PK Compression Driver 1″ Features:PEEK diaphragmOptimized cast aluminum rear chamber with dampingWide useful bandwidthSmooth frequency and impedance responseAdvanced voice coil with flat copper clad aluminum wire Product Specification:Nominal Impedance8 OhmRDC6.2 OhmAES Power Handling (1)60 WMaximum Power Handling (2)120 WSensitivity (1W/1m)(3)107 dBFrequency Range700 – 20000 HzRecommended Crossover Frequency1.8 kHzVoice Coil Diameter44.3 mm (1.74 in)Winding MaterialFlat copper clad aluminiumFormer MaterialKaptonWinding Depth2.3 mm (0.079 in)Magnetic Gap Depth2.5 mm (0.08 in)Diaphragm MaterialPolyether ether ketone (PEEK)Flux Density1.59 TMagnetFerriteDemodulation–Phase Plug DesignAnnularExit Angle19.05° conicalNET Air Volume filled by HF Driver0.51 liters Dimensions & Weight:Throat Diameter25.4 mm (1 in)Overall Diameter120 mm (4.72 in)90° Mounting Holes Diameter (4xM6)76 mm (3.0 in)Depth62.02 mm(1.80 in)Net Weight2.22 kg (4.89 lb)Shipping Box139 X 121 X 73 mm(5.47*4.76*2.87 in)Gross Weight2.29 Kg(5.04 lb) ROSSO-44CD-PK Drawing: ROSSO-44CD-PK Frequency Response: NOTES :Driver mounted on Horn H2501) 2 hour test made with continuous pink noise signal within the range from      the recommended crossover frequency to 20kHz.(2) Maximum power is defined as 3dB greater than nominal power.(3) Averaged within the frequency range (2kHz – 18kHz) ROSSO-44CD-PK Specification  Please Click Here.Note:  Shipping charges may vary based on Area/Weight of the product so kindly contact us before placing the order
