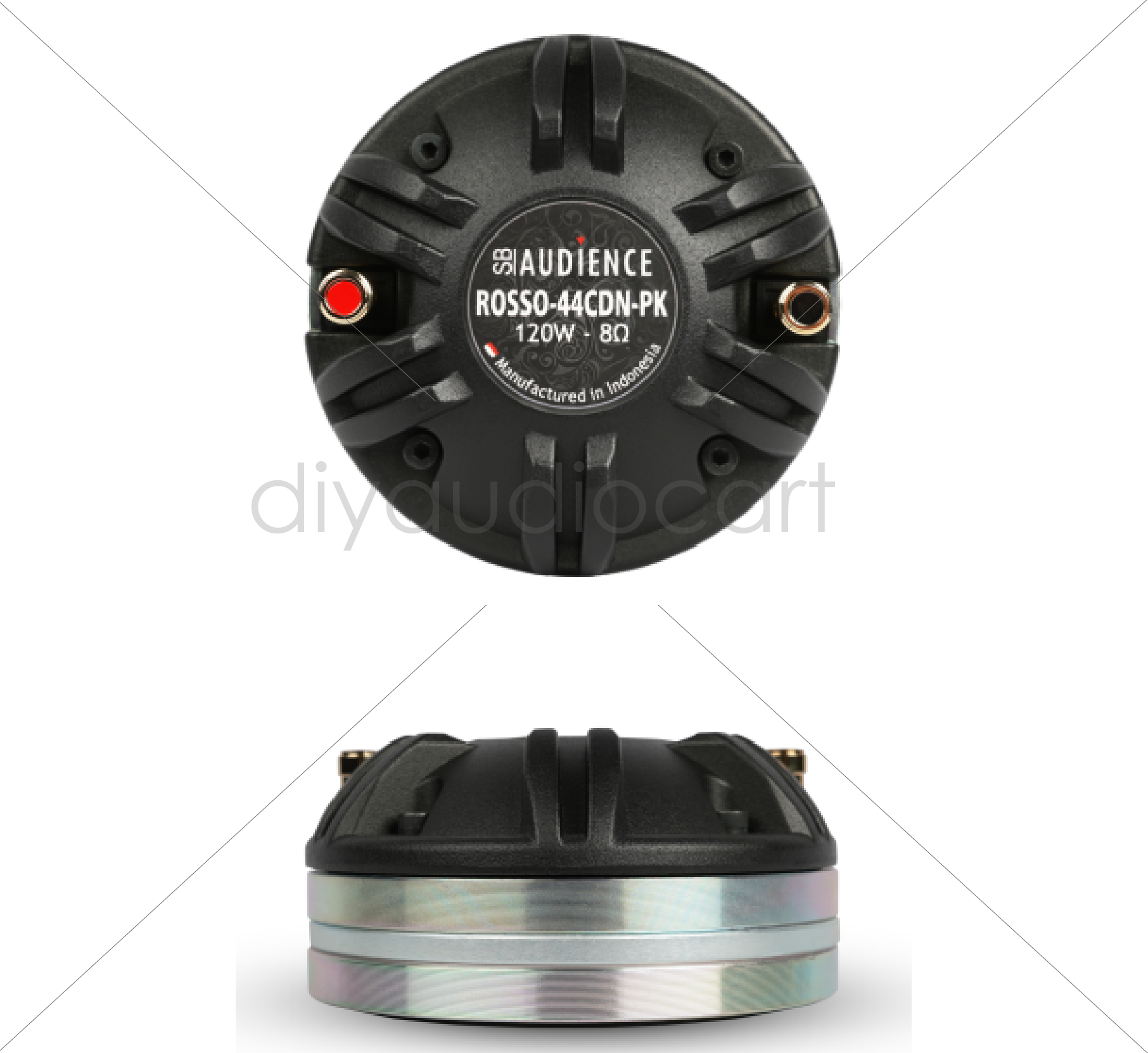

SB Audience ROSSO-44CDN-PK 1″ Compression Driver

SB Audience ROSSO-44CDN-PK 1″ Compression Driver Features:PEEK diaphragmOptimized cast aluminum rear chamber with dampingWide useful bandwidthSmooth frequency and impedance responseAdvanced voice coil with flat copper clad aluminum wire Product Specification:Nominal Impedance8 OhmRDC6.2 OhmAES Power Handling (1)60 WMaximum Power Handling (2)120 WSensitivity (1W/1m)(3)109 dBFrequency Range700 – 20000 HzRecommended Crossover Frequency1.8 kHzVoice Coil Diameter44.3 mm (1.74 in)Winding MaterialFlat copper clad aluminiumFormer MaterialKaptonWinding Depth2.3 mm (0.079 in)Magnetic Gap Depth2.5 mm (0.09 in)Diaphragm MaterialPolyether ether ketone (PEEK)Flux Density1.85 TMagnetNeodymiumDemodulation–Phase Plug DesignAnnularExit Angle13.69° conicalNET Air Volume filled by HF Driver0.30 liters  Dimensions & Weight:Throat Diameter25.4 mm (1 in)Overall Diameter100 mm (3.93 in)90° Mounting Holes Diameter (4xM6)76 mm (2.99 in)Depth49.9 mm(1.96 in)Net Weight1.34kg (2.95 lb)Shipping Box126 X 104 X 66 mm(4.96*4.09*2.59 in)Gross Weight1.39 Kg(3.06 lb) NOTES :Driver mounted on Horn H250(1) 2 hour test made with continuous pink noise signal within the range from      the recommended crossover frequency to 20kHz.(2) Maximum power is defined as 3dB greater than nominal power.(3) Averaged within the frequency range (2kHz – 18kHz) ROSSO-44CDN-PK Specification Please Click Here.Note:Shipping charges may vary based on Area/Weight of the product so kindly contact us before placing the order
